In the realm of industrial manufacturing, the efficiency and speed of production processes are paramount. One technology that has revolutionized pipe cutting is the Laser Pipe Cutting Machine. As a leading supplier of these advanced machines, I am often asked the question: "How fast can a Laser Pipe Cutting Machine cut pipes?" In this blog, we will delve into the factors that influence the cutting speed of these machines and explore the capabilities that make them a game-changer in the industry.
Understanding Laser Pipe Cutting Technology
Before we discuss the cutting speed, it's essential to understand how a Laser Pipe Cutting Machine works. These machines use a high-powered laser beam to melt, burn, or vaporize the material, creating a precise cut. The laser beam is directed by a computer numerical control (CNC) system, which allows for highly accurate and repeatable cuts.
The cutting speed of a Laser Pipe Cutting Machine is influenced by several factors, including the power of the laser, the type and thickness of the material, the complexity of the cut, and the machine's design and capabilities.
Factors Affecting Cutting Speed
Laser Power

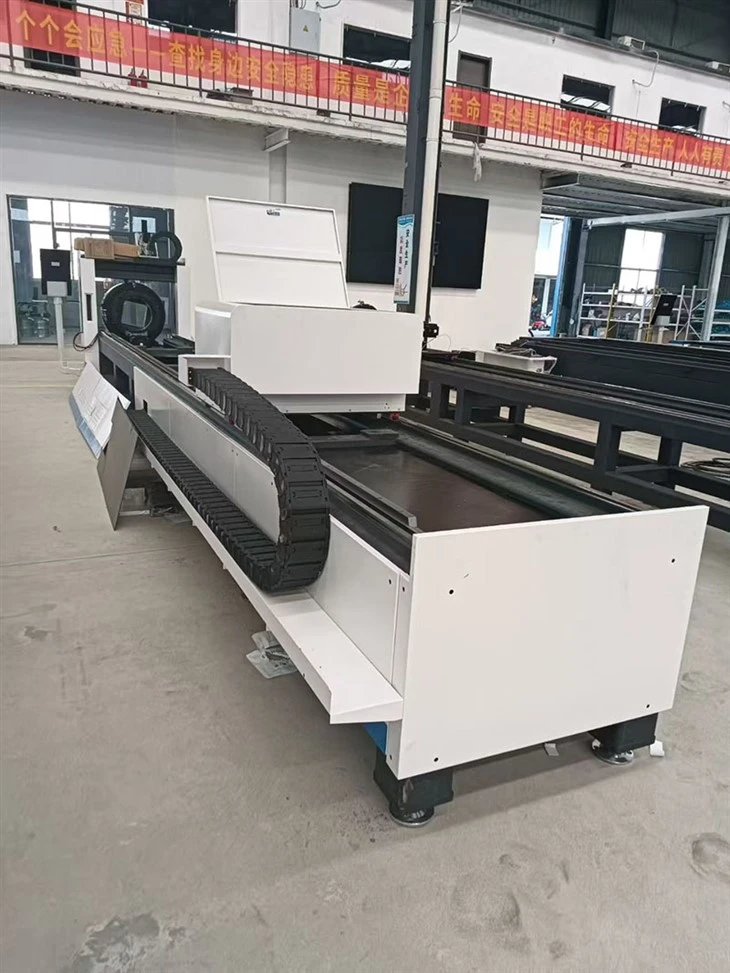

The power of the laser is one of the most significant factors affecting cutting speed. A higher-powered laser can cut through thicker materials more quickly. For example, a 3000w Laser Tube Cutting Machine can cut through steel pipes up to 20mm thick at a much faster rate than a lower-powered machine.
Material Type and Thickness
Different materials have different cutting characteristics. For instance, metals like steel and aluminum are relatively easy to cut with a laser, while materials like stainless steel and titanium may require more power and time. The thickness of the material also plays a crucial role. Thicker materials generally take longer to cut, as the laser needs to penetrate deeper into the material.
Cut Complexity
The complexity of the cut also affects the cutting speed. Simple straight cuts can be made much faster than complex shapes or intricate designs. The Laser Pipe Cutting Machine needs to adjust the laser beam's path and power to accommodate the different shapes, which can slow down the cutting process.
Machine Design and Capabilities
The design and capabilities of the Laser Pipe Cutting Machine also impact the cutting speed. Machines with advanced features such as high-speed motion control systems, automatic loading and unloading mechanisms, and real-time monitoring can significantly improve the cutting efficiency.
Typical Cutting Speeds
The cutting speed of a Laser Pipe Cutting Machine can vary widely depending on the factors mentioned above. However, to give you a general idea, here are some typical cutting speeds for different materials and thicknesses:
- Steel Pipes: For a 10mm thick steel pipe, a CNC Pipe Laser Cutting Machine with a 2000w laser can cut at a speed of approximately 2-3 meters per minute. For a 20mm thick steel pipe, the cutting speed may be around 1-1.5 meters per minute.
- Aluminum Pipes: Aluminum is a relatively soft material, and a 10mm thick aluminum pipe can be cut at a speed of around 3-4 meters per minute with a 1500w laser.
- Stainless Steel Pipes: Stainless steel is more difficult to cut than steel or aluminum. A 10mm thick stainless steel pipe may be cut at a speed of 1-2 meters per minute with a 2000w laser.
It's important to note that these are just approximate values, and the actual cutting speed may vary depending on the specific machine and cutting conditions.
Advantages of Laser Pipe Cutting Machines
In addition to their high cutting speed, Laser Pipe Cutting Machines offer several other advantages:
- Precision: Laser cutting provides extremely high precision, with tolerances as low as ±0.1mm. This makes it ideal for applications that require high accuracy, such as in the aerospace and automotive industries.
- Versatility: Laser Pipe Cutting Machines can cut a wide range of materials, including steel, aluminum, stainless steel, and copper. They can also cut different shapes and sizes of pipes, from small diameter tubes to large diameter pipes.
- Efficiency: Laser cutting is a non-contact process, which means there is no physical contact between the cutting tool and the material. This reduces the wear and tear on the machine and the material, resulting in longer tool life and lower production costs.
- Automation: Many Laser Pipe Cutting Machines are equipped with advanced automation features, such as automatic loading and unloading systems, which can significantly improve the production efficiency.
Conclusion
The cutting speed of a Laser Pipe Cutting Machine depends on several factors, including the laser power, material type and thickness, cut complexity, and machine design. By choosing the right machine and optimizing the cutting parameters, you can achieve high cutting speeds and improve the efficiency of your production process.
As a supplier of Laser Pipe Cutting Machines, we are committed to providing our customers with the latest technology and the highest quality machines. If you are interested in learning more about our products or discussing your specific requirements, please feel free to contact us. We look forward to working with you to find the best solution for your pipe cutting needs.
References
- Smith, J. (2020). Laser Cutting Technology: Principles and Applications. New York: Wiley.
- Jones, R. (2019). Advanced Manufacturing Techniques in the Pipe Industry. London: Elsevier.
