Your Professional Laser Cutting Machine Supplier
Our goal is to become your reliable partner in the laser cutting machine in China. Qingdao Tonchel Industrial Equipment Co., Ltd was established in 2013, focusing on the research and development, production, and sales services of laser welding machines, laser cleaning/rust removal machines, laser marking machines, and laser cutting machine equipment. We are committed to applying advanced manufacturing technologies and strict quality control standards to every product. Our products are quality-assured, making us a dependable choice for long-term cooperation.
-
![Laser Sheet Cutting Machine]()
Laser Sheet Cutting MachineThe company’s Laser Sheet Cutting Machine is a high-precision CNC fiber laser cutting system, integrating advanced technologies in laser processing, precision machinery, and numerical control.read more -
![CNC Pipe Laser Cutting Machine]()
CNC Pipe Laser Cutting MachineThe company’s CNC Pipe Laser Cutting Machine is a high-precision, high-efficiency solution for industrial tube and pipe processing. Integrating fiber laser technology, precision mechanics, andread more -
![3000w Laser Plate Cutting Machine]()
3000w Laser Plate Cutting MachineThe 3015B-TZ fiber laser cutting machine produced by the company adopts a 3000W fiber laser and is equipped with a high-precision rack and guide rail transmission mechanism. It is a precision CNCread more -

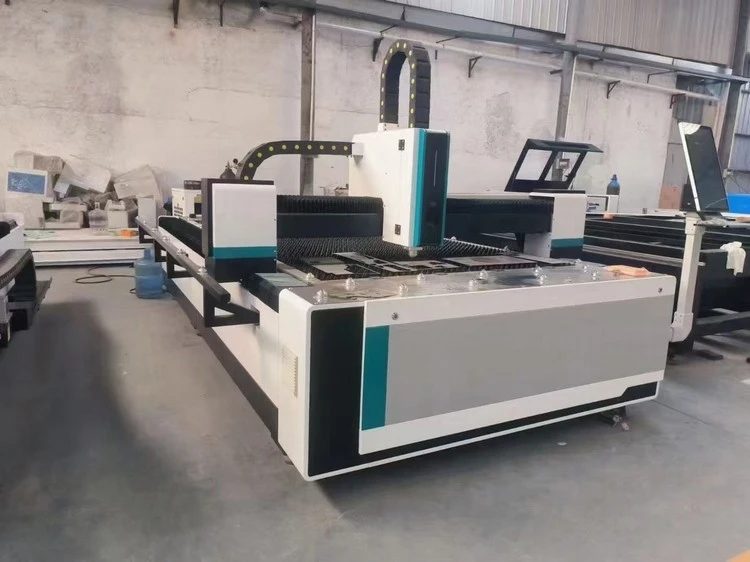

![Single Platform Laser Cutting Machine]()
Single Platform Laser Cutting MachineUpgrade your metal cutting process with the Single-Platform 3000W Fiber Laser Cutting Machine — a high-precision, high-efficiency solution designed for modern industrial production. Combiningread more -
![Laser Pipe Cutting Machine]()
Laser Pipe Cutting MachineThe company’s Fiber Laser Pipe Cutting Machine is a high-precision, high-efficiency CNC system designed for industrial pipe and tube processing. It integrates advanced fiber laser technology,read more -
![3000w Laser Tube Cutting Machine]()
3000w Laser Tube Cutting Machine3000W Fiber Laser Tube Cutting Machine is a high-precision CNC system that combines advanced fiber laser technology, precision mechanics, and intelligent numerical control. Equipped with a 3000Wread more
Why Choose Us
Our Certifications
Our company has obtained ISO9001 certification, patent certificates, and other certifications.
Customized Solutions
The entire machine comes with a one-year warranty and free online remote technical support. We offer technical consultation, sample testing, and product selection, recommending the best solution based on customer needs.
Our Services
Rapid response within 24-48 hours; for any problems encountered during product application, please contact our professional after-sales engineers for online technical support and guidance.
High Precision: The narrowness of the energy beam and the precision with which the material and/or the laser optics can be moved ensures extremely high cutting quality.
High Speed: Few production methods can come close in processing speed to laser cutting. The ability to cut a 40 mm steel sheet using a 12 kW oxygen-assisted laser provides speeds some 10x faster than a bandsaw and 50–100 times faster than wire cutting.
Unlimited 2D Complexity: Laser cutting allows intricacy through the nature of the G-code movement control method of positioning and the small size of the applied energy hot spot.
Variety of Materials: Laser cutting is a flexible technology that can be adapted to cut widely different materials efficiently, including: acrylic and other polymers, stainless steel, mild steel, titanium.
Specification of Laser Cutting Machine
|
Performance metrics |
Parameter |
|
Processing range |
3000mmx1500mm |
|
X-axis travel |
1510mm |
|
Y-axis travel |
3050mm |
|
Z-axis travel |
100mm |
|
Positioning accuracy |
0.05mm |
|
Repetitive positioning accuracy |
0.03mm |
|
Maximum positioning speed |
65m/min |
|
Maximum acceleration |
1G |
|
Total weight |
About 2.5T |
|
The maximum load capacity |
800KG |
|
The external dimensions |
Approximately 4.6mX2.3mX2m |
|
Voltage requirement |
380V/50HZ |
|
Power consumption of the whole machine |
24KVA |
|
Total power protection level |
IP54 |
Sturdy and Durable Bed: The machine bed is constructed from welded steel plates and undergoes heat treatment, ensuring rigidity, high precision, long service life, compact structure, and an attractive appearance.
High-Strength Gantry (Longmen): The gantry is made of high-strength manganese steel, welded as a single piece and aged for enhanced rigidity, strength, stability, and seismic resistance.
Premium Electrical Components: Core electrical components and servo drives are sourced from leading brands, guaranteeing stable, reliable, and responsive machine operation.
Integrated Design: The combination of the machine and control cabinet optimizes floor space usage while maintaining a compact footprint.
Advanced CNC System: Running on Windows OS and equipped with the dedicated Jiaqiang Fiber CNC System, the machine offers a powerful, user-friendly interface.
Automotive Industry: In the automotive industry, laser cutting stands as a pivotal tool, especially for crafting intricate components and customizations.
Aerospace Industry: In the aerospace industry, the application of laser cutting technology is crucial. The need for lightweight, high-strength materials in this sector cannot be overstated.
Construction Industry: Laser cutting has also made a significant impact in the construction industry. Its use in fabricating steel frameworks and detailed architectural elements has brought a new level of creativity and precision to the field.
Medical Device Industry: In the realm of medical device manufacturing, the precision and versatility of laser cutting technology are indispensable.
Electronics Industry
Laser cutting technology plays a pivotal role in the electronics industry, especially in the miniaturization of electronic devices.
Jewelry Industry
In the world of jewelry making, laser cutting technology has opened new doors for creativity and precision.
Textile and Fashion Industry
The impact of laser cutting on the textile and fashion industry is profound. This technology has enabled designers to experiment with intricate patterns and designs, pushing the boundaries of fashion and textile production.
Components of Laser Cutting Machine
Bed frame
The bed is welded from steel plates, subjected to annealing to eliminate internal stress, and then rough machined. After secondary vibration aging treatment, it is precision machined, which effectively solves the stress caused by welding and processing, greatly improving the stability of the machine tool.
Beam
Welding with high-performance manganese steel material results in better mechanical properties than aluminum crossbeams. Steel plates have higher strength and rigidity.
Transmission device
X. Both the Y and Z axes are equipped with high-performance servo motors, high rigidity precision planetary gear reducers, grinding gears and racks, high-precision linear guides
Other Service of Laser Cutting Machine
|
Package |
Tray |
|
Shipping |
Sea/Express |
|
Payment |
We accept T/T and L/C. For samples or small trial orders |
FAQ
As one of the leading laser cutting machine manufacturers and suppliers in China, we warmly welcome you to buy the best laser cutting machine made in China here from our factory. All customized machines are with high quality and competitive price.
