Woodworking machinery machine base
The base of the welding processing woodworking machinery machine (also known as the welding bed body, welding frame) is made of "professional steel plates and square tubes", which are processed by CNC cutting, fixture assembly, box reinforcement plate welding, stress relief and aging, and precision machining of gantry machinery. It is the core basic bearing component of woodworking CNC equipment such as CNC cutting machines, wall panel gantry processing centers, extended panel saws, and large panel sanding machines.

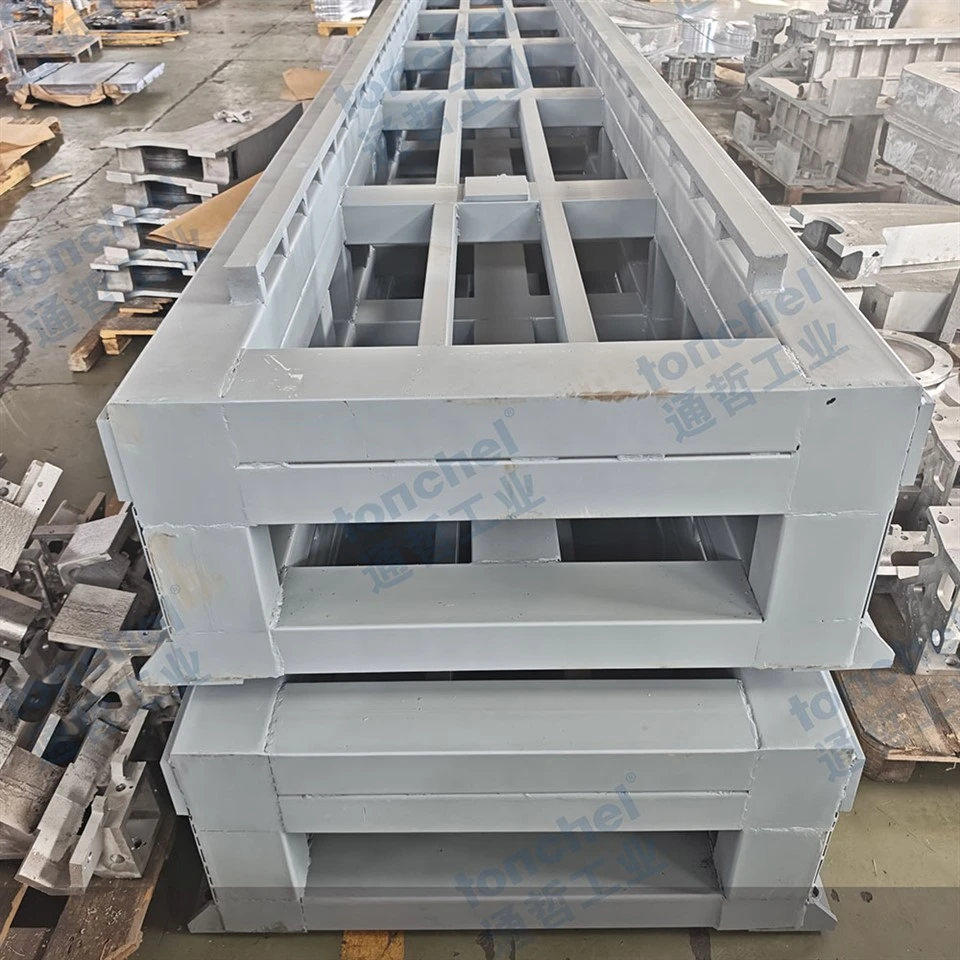

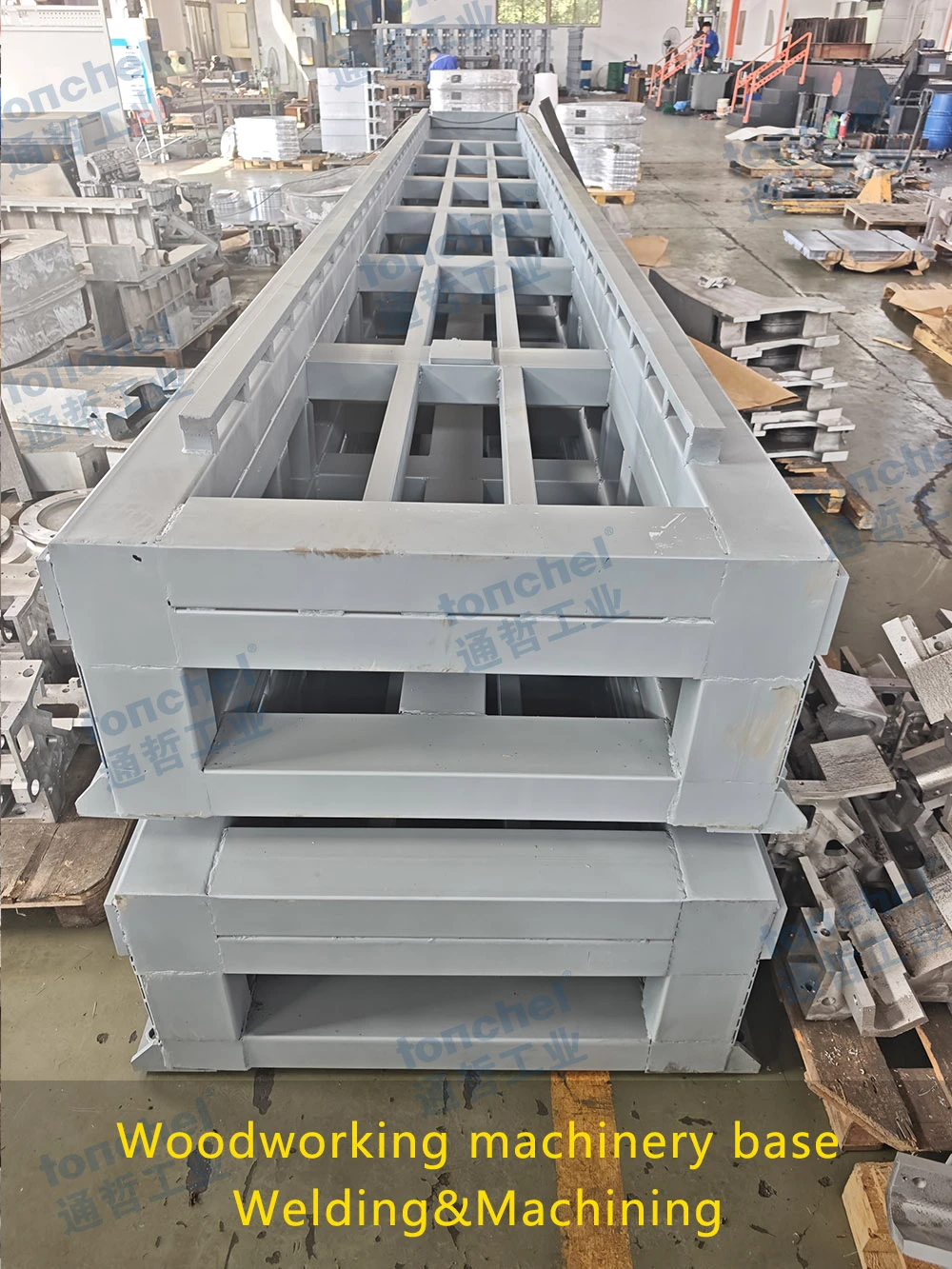

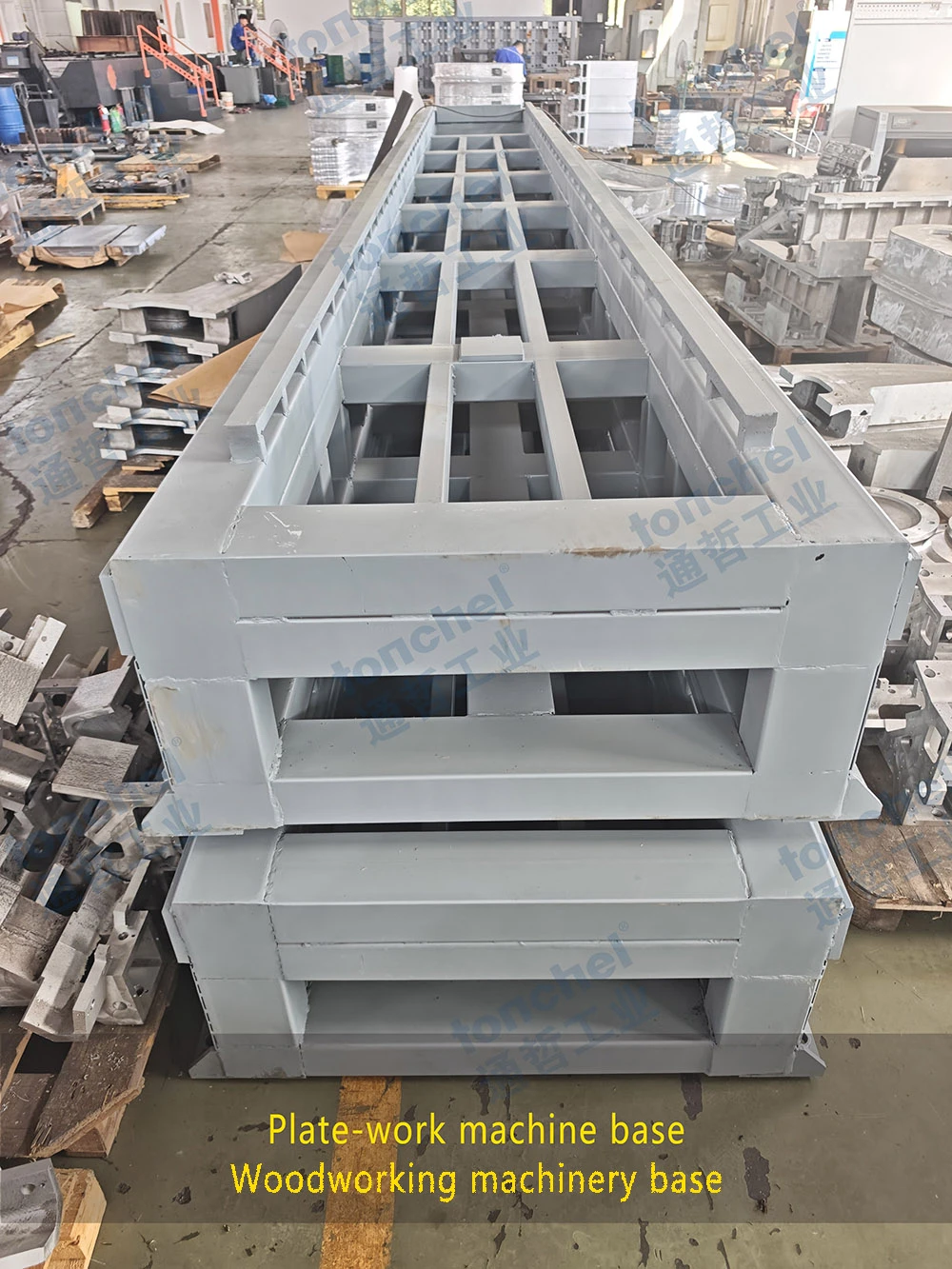

The product features a box shaped grid reinforced structure, replacing traditional cast iron bed frames, and is particularly suitable for woodworking equipment with ultra long travel distances of 4m and 6m. It supports the worktable, guide rails, racks, and spindle components, providing load-bearing capacity, absorbing cutting vibrations, and ensuring long-term geometric accuracy of the equipment.
Product Structure Features
1. Closed box type grid reinforced plate structure.
The internal horizontal and vertical partitions form a closed compartment with strong bending and torsional rigidity; The top reserved guide rail installation protrusion is aligned with the support position of the guide rail, and the load is directly transmitted to the base plate, reducing long-distance deflection deformation; Thickened box structure at both ends, used for installing adjustable feet to resist cutting overturning moments.
2. Reserve a precision machining reference table.
Reserve 2-3mm machining allowance for the welding blank of the guide rail and rack installation convex platform, and subsequently mill the gantry machining center in one go to ensure the flatness and parallelism of the guide rail installation.
3. Reserve assembly interfaces.
Ground holes, motor seats, limit blocks, wiring, and dust collection installation holes can be reserved as needed to meet the assembly needs of different models.
Product Advantages & Applicable equipment
1. Cost advantage:
Compared to the same specifications, the price of cast iron bed frames is 30% to 50% lower, and the production difficulty of oversized large parts is much lower than that of large castings.
2. Fast delivery:
No need for casting molds, short cutting and welding cycle, suitable for rapid production.
3. Flexible design:
The size can be customized, with flexible addition or removal of reinforcing plates, and various assembly holes can be reserved to adapt to non-standard woodworking equipment.
4. Adequate rigidity:
Closed box structure, resistant to bending and torsion, meeting the load-bearing requirements of high-speed cutting and milling of woodworking boards.
Applicable equipment:
Extended CNC cutting machine, wall panel gantry machining center, wooden door processing equipment, long board sanding machine, heavy-duty push table cutting saw, board cutting gantry equipment.
As the basic carrier of woodworking CNC machine tools, the rigidity and accuracy of the base directly determine the machining accuracy and equipment service life of sheet cutting and milling. Welding machine processing base is a high cost-effective mainstream choice for long stroke large board woodworking equipment.
